Home > Products > Manual Positioners > Fiber Alignment Stages > UFP series High Sensitivity Fiber Optic Alignment Stages

UFP series High Sensitivity Fiber Optic Alignment Stages

Inquiry

Details

Features:

• The linear stage has both coarse adjustment and fine adjustment, sensitivity is much better than 0.5um

• The rotation stage sensitivity is much better than 23.4"

• High stability

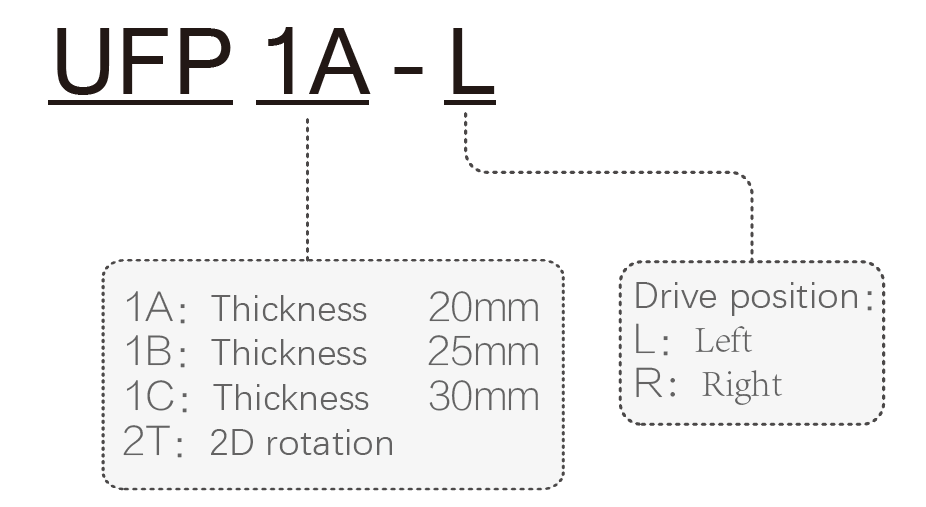

Naming Rules

Selection Table

Model	UFP1A	UFP1B	UFP1C-L	UFP1C-R	UFP2T-L	UFP2T-R
Table Size(mm)	60×60				45×45
Table Thickness(mm)	20	25	30		-
Travel	coarse adjustment:±6.5mm;fine adjustment:±0.3mm				θx:±3°;θy:±3°
Bearings	Linear slide guide		Crossed-Roller Bearings		Crossed-Roller Ring
Actuators	micrometer
Weight(Kg)	0.28	0.32	0.4		0.64
Sensitivity	coarse adjustment:≤10µm;fine adjustment≤0.5µm				θx:≤25.2″;θy:≤23.4″
Static parallelism	≤60µm				-
Motion parallelism	≤10µm				-
Motion straightness	≤3µm				-
Load(Kg)	5	5	5		1.5
