Home > Products > Motion Control > 2D- or 3D motorized alignment stages > Motorized XYR series all-in-one three-axis stages

XYR

Motorized XYR series all-in-one three-axis stages

XYR series motorized all-in-one three-axis stages are parallel-type alignment systems for the workpieces which are needed to be scanned or aligned in production lines to meet requirements of high precision and high operation repetition rate.

Inquiry
Download
Details
Description:
XYR series motorized all-in-one three-axis stages are parallel-type alignment systems for the workpieces which are needed to be scanned or aligned in production lines to meet requirements of high precision and high operation repetition rate. Each XYR all-in-one stage system includes upper-table, baseplate and four units of motion modular between them. Every module is guided by cross-roller guides and bearings. Three of them can be driven by short-lead ball screws, with standard stepping motors. Five-phase stepping motors and servo motors are optional. Central position of stages is used for keeping a light-through hole for transmission-type applications, or, keep a standard table without hole to meet the requirements of reflection-type operations.
Main characteristics:
•Using ball screws to meet the requirement of high precise and high repetition operations
•Better motion accuracy is guaranteed by employing crossroller guides and bearings
•Standard modular-design principles present better uniformity of parts and shorter delivery time of products
•Rectangular light-through hole is provided to make stages be suitable for transmission-type applications
•Two-phase stepping motors are standard. Five-phase stepping or servo motors are optional

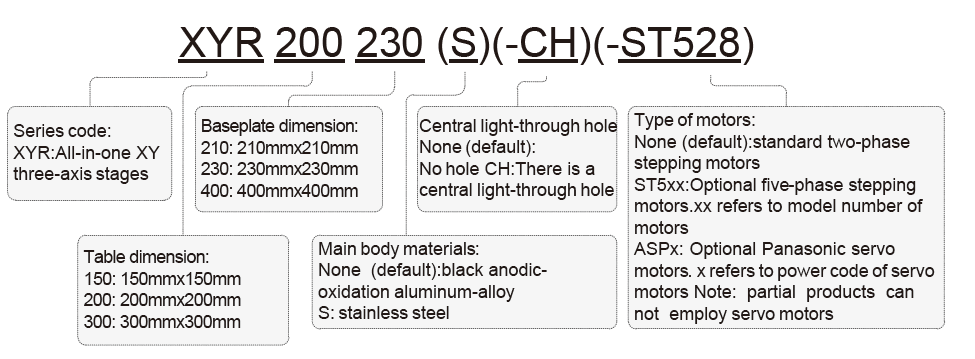

Naming rules:

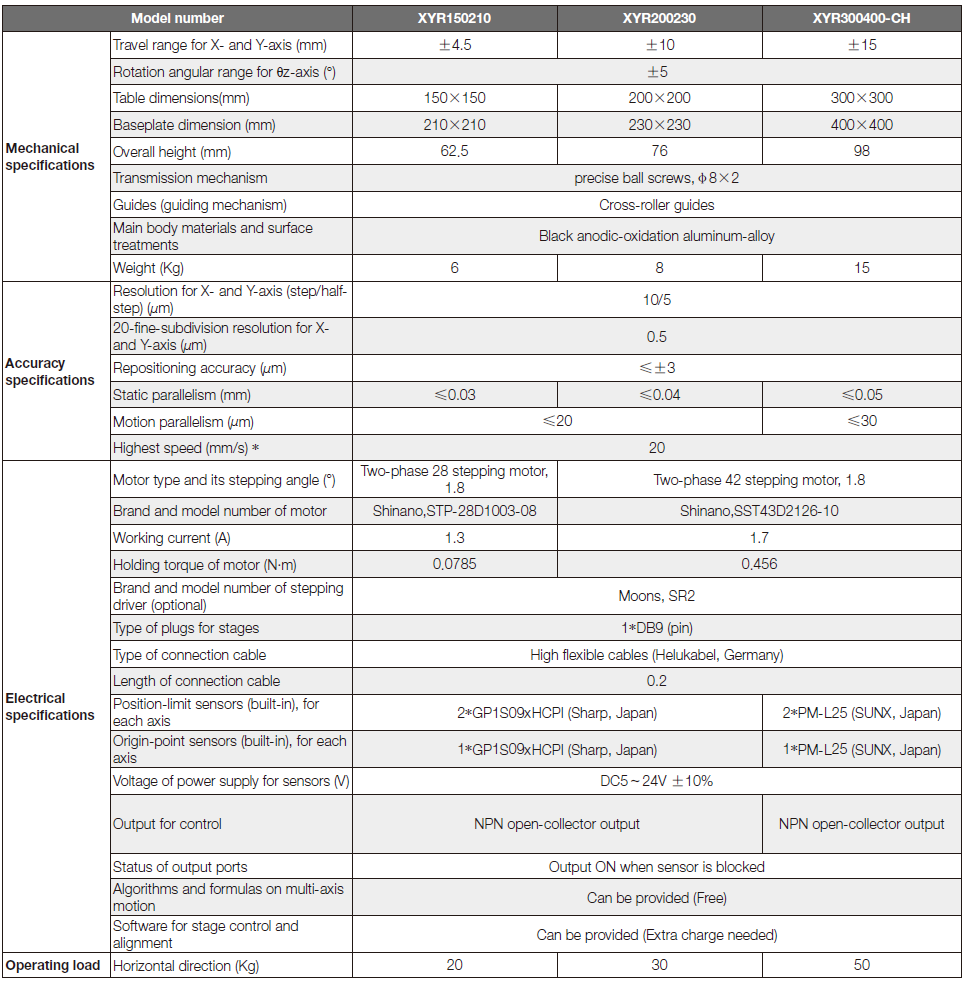

Selection chart:
* Highest speed is measured with the conditions of zero-load and motors being worked at 600rpm
