Home > Products > Motion Control > Piezo-Motion Units > Ambient Temperature · 6-D piezoelectric Positioning System

Ambient Temperature · 6-D piezoelectric Positioning System

Inquiry
Download
Details
Piezo · 6D Positioning System— HP120.Lab.O / .R (Colse-loop)
Piezoelectric motion@RT solutions — “.Lab Series“ Well packaged piezoelectric motion unit
6 degrees; Parallel design; More stable.

Features:
• Super silent，20 kHz drive frequency
• Size: Ø126 × 74 mm
• Close loop · Resistive encoder (.R) & Optical encoder (.O) optional
• High precision · Resolution (.O) 1 nm、10 nm Optional
• Economical · Resolution(.R) 100-200nm
• Minimum step size < 10 nm
• 20 mm (XY); 10 mm (Z); 20 ° (ΘxΘy); 30 ° (Θz)
• Maximum vertical load: 500 g
• Non magnet（.NM）、High Vacuum（.HV）& Ultra-high Vacuum（.UHV）optional

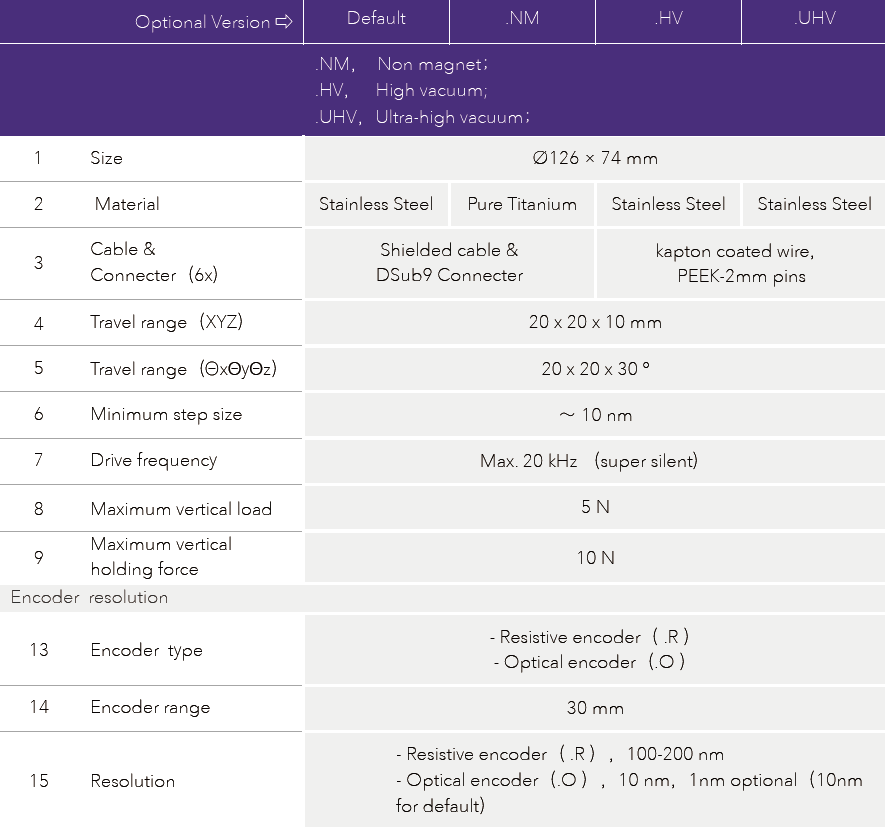

HP120.Lab.O / .R Piezo·6D Positioning System — Technical Parameters
